FSBD-0.5型电动多叶风机专用蝶阀
广泛适用于冶金、矿山、建 材、化工、电站等行业和通风除尘、供气管道上，对空气、烟气、含粉尘气体、可燃性气体进行启闭和调节。
产品概述
SBD-0.5、DBD-0.5、FDBD-0.5、FSBD-0.5电动多叶风机专用蝶阀、风机启动阀，圆形风机启动调节阀，风机蝶阀(又称风机启动调节阀，本阀可与各种执行机构配套组合使用，具有叶片多，噪 声小，重量轻，操作力矩力小，流通能力大，操作维护方便，价格便宜，特别适用于大口径，大流量低压差场合(如风机进出口处)。广泛适用于冶金、矿山、建 材、化工、电站等行业和通风除尘、供气管道上，对空气、烟气、含粉尘气体、可燃性气体进行启闭和调节。
性能参数
公称压力：0.05MPa
电源电压：220V或380V·AC
适用温度：常温型-20～300℃
泄漏率：普通型<3%；低泄漏型<1%
适用介质：空气、烟气、含粉尘气体、可燃性气体
外形结构尺寸
| DN×DN | C×D | A×B | L | n-cDd | 风机 | 机号 | H | FDBD-0.5 | FSBD-0.5 |
| 128×92 | 182×148 | 160×126 | 160 | 14-Φ7 | 9-19 | No.4 | 462 | DKJ-210 | FSBD-0.5 |
| 144×104 | 198×160 | 176×135 | No.4.5 | 468 | |||||
| 160×115 | 214×171 | 192×150 | No.5 | 476 | |||||
| 179×129 | 233×185 | 212×162 | No.5.6 | 490 | |||||
| 202×145 | 256×204 | 236×180 | No.6.3 | 480 | |||||
| 196×128 | 250×134 | 228×165 | 9-26 | No.4 | 484 | ||||
| 221×144 | 275×200 | 252×177 | No.4.5 | 495 | |||||
| 245×160 | 299×216 | 284×192 | No.5 | 585 | |||||
| 274×179 | 328×235 | 305×212 | 18-Φ7 | No.5.6 | 518 | ||||
| 309×202 | 365×261 | 340×236 | No.6.3 | 504 | |||||
| 227×163 | 293×232 | 270×204 | 14-Φ7 | 9-19 | No.7.1 | 514 | |||
| 256×184 | 322×253 | 296×228 | No.8 | 526 | |||||
| 288×207 | 354×276 | 330×252 | 18-Φ10 | No.9 | 537 | ||||
| 320×230 | 386×299 | 360×276 | 180 | No.10 | 563 | ||||
| 359×258 | 448×350 | 415×316 | 18-Φ12 | No.11.2 | 570 | ||||
| 400×288 | 489×380 | 456×344 | 20-Φ12 | No.12.5 | 604 | DKJ-310 | |||
| 448×322 | 557×448 | 516×405 | 22-Φ12 | No.14 | 620 | ||||
| 512×368 | 621×464 | 574×440 | 24-Φ12 | No.16 | 628 | ||||
| 348×227 | 414×296 | 390×272 | 20-Φ10 | 9-26 | No.7.1 | 528 | |||
| 392×256 | 458×325 | 432×300 | No.8 | 543 | |||||
| 441×288 | 507×357 | 482×330 | No.9 | 550 | |||||
| 490×320 | 556×389 | 528×356 | No.10 | 575 | |||||
| 540×358 | 638×450 | 600×410 | 200 | 26-Φ12 | No.11.2 | 605 | S-02 | ||
| 613×400 | 702×492 | 604×456 | 28-Φ12 | No.12.5 | 626 | ||||
| 686×448 | 795×564 | 747×516 | 30-Φ12 | No.14 | 662 | DKJ-410 | |||
| 784×512 | 893×628 | 840×588 | 34-Φ12 | No.16 | 759 | ||||
| 256×199 | 314×254 | 290×231 | 160 | 14-Φ7 | 5-48 | No.4 | 514 | DKJ-210 | S-01 |
| 324×252 | 382×308 | 360×284 | 180 | 18-Φ7 | No.5 | 534 | DKJ-310 | ||
| 409×315 | 466×371 | 443×348 | No.6.3 | 566 | |||||
| 520×400 | 632×509 | 580×462 | 18-Φ15 | No.8 | 635 | S-02 | |||
| 655×504 | 771×613 | 728×570 | 220 | 24-Φ15 | No.10 | 687 | |||
| 815×627 | 935×737 | 888×690 | 28-Φ15 | No.12.5 | 814 | DKJ-410 | |||
| 228×196 | 277×250 | 256×228 | 160 | 16-Φ7 | 4-72 | No.2.8 | 511 | DKJ-210 | S-01 |
| 256×224 | 300×278 | 288×256 | No.3.2 | 528 | |||||
| 288×252 | 341×306 | 320×284 | No.3.6 | 532 | |||||
| 320×280 | 374×336 | 355×315 | 180 | 20-Φ7 | No.4 | 554 | DKJ-310 | ||
| 360×315 | 414×371 | 396×350 | No.4.5 | 566 | |||||
| 400×350 | 456×406 | 435×385 | 24-Φ7 | No.5 | 529 |
注： 1. 本阀与上述配电动执行器组合外，还可与其它电动、气动、液动、电液动执行器组合使用。
| DN | D1 | D | L | n-φd | 风机型号 | H | DBD-0.5 | SBD-0.5 |
| 280 | 306 | 324 | 160 | 8-φ10 | 4-72 | 524 | DKJ-210 | S-01 |
| 300 | 350 | 367 | 180 | 16-φ7 | 567 | |||
| 360 | 394 | 416 | 16-φ7 | 616 | ||||
| 450 | 490 | 512 | 16-φ10 | 712 | ||||
| 500 | 550 | 572 | 772 | |||||
| 600 | 650 | 676 | 200 | 876 | ||||
| 180 | 205 | 230 | 160 | 8-φ7 | 9-19 9-26 | 435 | ||
| 200 | 225 | 250 | 455 | |||||
| 224 | 254 | 284 | 462 | |||||
| 250 | 281 | 310 | 8-φ10 | 498 | ||||
| 280 | 320 | 360 | 523 | |||||
| 315 | 355 | 395 | 180 | 600 | ||||
| 355 | 395 | 435 | 640 | |||||
| 400 | 450 | 500 | 8-φ12 | 705 | ||||
| 450 | 500 | 550 | 750 | |||||
| 500 | 560 | 620 | 12-φ12 | 820 | ||||
| 560 | 620 | 680 | 200 | 900 | ||||
| 630 | 690 | 750 | 950 | |||||
| 710 | 770 | 930 | 16-φ12 | 1030 | ||||
| 800 | 860 | 920 | 220 | 9-26 | 1120 | DKJ-310 | S-02 | |
| 900 | 970 | 1040 | 16-φ15 | 1240 | ||||
| 1000 | 1065 | 1110 | 260 | 4-72 y5-48 | 1310 | |||
| 1100 | 1170 | 1220 | 20-φ15 | 1420 | ||||
| 1120 | 1190 | 1250 | 280 | 24-φ15 | y5-48 G4-73-11 y4-73-11 | 450 | DKJ-410 | S-03 |
| 1200 | 1270 | 1330 | 1530 | |||||
| 1400 | 1420 | 1520 | 320 | 1720 | ||||
| 1600 | 1660 | 1700 | 28-φ15 | 1900 | DKJ-510 | S-04 | ||
| 1800 | 1860 | 1900 | 420 | 2100 | ||||
| 2000 | 2070 | 21400 | 32-φ15 | 2240 | ||||
| 2200 | 2260 | 2300 | 450 | 36-φ15 | 2500 | DKJ-610 | S-05 | |
| 2500 | 2560 | 2600 | 2800 | |||||
| 2800 | 2860 | 2900 | 500 | 3100 |

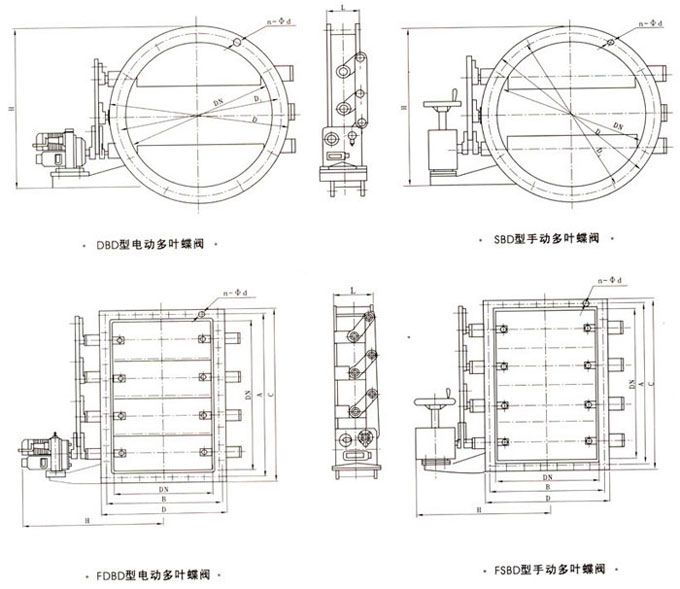

尺寸图
.png){kind=small}
